Application Details:
- Immediate adaptation to any dyeing machine by menu driven dialogue, and built in Soft PLC
- The most sophisticated control functions for any type and any configuration of dyeing machines
- Automatic multi tasking execution of parallel functions according to process logic
- Menu driven dye program editing
- The number and length of dye programs are practically unlimited
- Transfer of programs and controller set up from one controller to another
- History reports

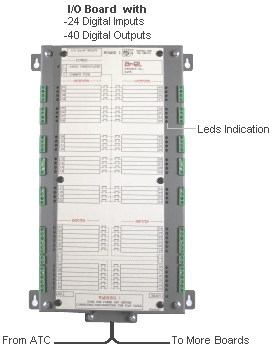

- Modular comprehensive range of input-output modules, including remote. 4 communication ports
- Upgrading just by changing the I/O boards
- Compact, robust construction, built to endure dye house conditions. Full protection against electronic noise
- Full battery back-up, for short and long power failures
- Very simple and easy to service
- Test and self diagnostic functions
- Password protection
- Various languages
- CE certificate
|
| Specifications: |
| Dimensions | :: | 210W 245H 101D |
| Weight | :: | 3.5 Kg |
| Display | :: | 160 characters |
| Front Panel | :: | Sealed IP65 |
| Power | :: | 100VAC - 240VAC or 24V AC/DC 30VA |
| Environment | :: | Max. Humidity - 95%
Max. Temperature - 50° |
|
|
|
